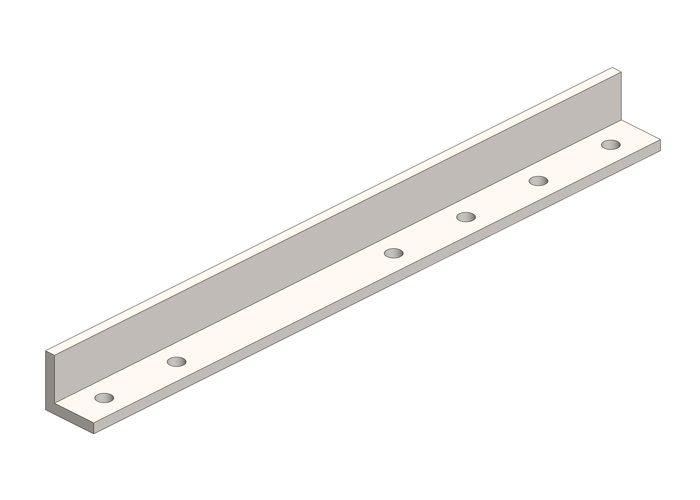

30529 Flange Bracket Only - 23.25 Inches
Product Description
Hevi-Bar II Flange Bracket Only (No Hangers Included). Plated Steel Bracket Finish. Dim X = 13.25 Inches, Dim Y = 23.50 Inches. Mounts to Vertical Web of Beam. Bracket is a 2 Inch x 2 Inch Angle by 3/8 Inches Thick. All Holes to Accept Hangers are 3 Inches On-Center and 0.56 Inches Diameter (to Accept 3/8 Inch diameter hanger Bolts). The First Hole is 1-1/4 Inch From the End. For 500 Amp Conductors
