38268D Web Bracket W/ S.S. Cross-Bolt Hangers & Insulator- 21.25 Inches
Replaced with item 537795D.

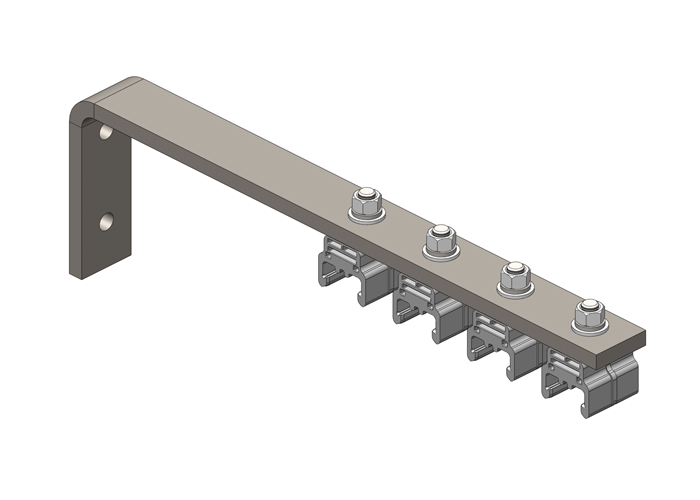

Hevi-Bar II Web Bracket W/ 4 Hangers (Stainless Steel Cross Bolt W/ Insulator, 27482) Pre-Installed. Plated Steel Bracket Finish. Dim X = 11.0 Inches, Dim Y = 21.25 Inches. Mounts to Vertical Web of Beam. Bracket is 2.5 Inches Wide by 3/8 Inches Thick. All Holes to Accept Hangers are 3 Inches On-Center and 0.56 Inches Diameter (to Accept 3/8 Inch diameter hanger Bolts). For 500 Amp Conductors
Hevi-Bar II Web Bracket W/ 4 Hangers (Stainless Steel Cross Bolt W/ Insulator, 27482) Pre-Installed. Plated Steel Bracket Finish. Dim X = 11.0 Inches, Dim Y = 21.25 Inches. Mounts to Vertical Web of Beam. Bracket is 2.5 Inches Wide by 3/8 Inches Thick. All Holes to Accept Hangers are 3 Inches On-Center and 0.56 Inches Diameter (to Accept 3/8 Inch diameter hanger Bolts). For 500 Amp Conductors
